High cube containers are one of the most commonly used containers for shipping cargo after standard 20ft and 40ft containers. Providing extra space, these containers are the go-to choices for forwarders.
A distant, identical, but taller cousin of 40ft standard containers, these specialized high cube containers are much in demand due to the height advantage
But, there’s more to them than just the height!
Know The High Cube

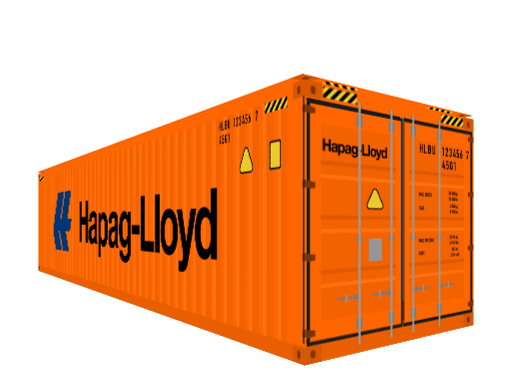

Standard sized containers with a height of 9’6” are called High Cube Containers. They look like standard containers, but because they are a tad bit higher, they appear like a cube when viewed from the front and back – thus the name. Also called High cube, Hi-Cube, HC, or HQ, a majority of these containers are made from durable materials like steel or aluminum.
They have numerous lashing rings (mounted on front top end rail, bottom cross member, and corner posts) which can bear a maximum of 1000 kg load. Some High Cubes may have recesses in the floor which serves two purposes:
- It helps in centering the containers on chassis, and
- It allows these containers to lie lower and thus, have taller construction.
High cubes have become very common in the maritime industry because of the extra space they offer, courtesy height. This is how these popular cases look:
Are you looking to buy or sell high cube containers? Try the neutral online trading marketplace at xChange. Get global buying and selling options available and gain market transparency within seconds.
Find 20ft. and 40ft. high cube containers to lease and buy in 2500 locations
Type in a pickup location to check out availabilities on xChange
How High Cubes Measure…
Containers are made according to standard sizes set by the International Organization for Standardization (ISO), so they can be stacked efficiently reducing the risk of toppling over during transit.
High Cube Containers are similar to the 40ft standard containers in length and breadth but have a height difference of exactly 1 foot — giving the HC an additional ~344 cu ft of storage capacity. They are also heavier. The difference between a standard 40ft container and a hi-cube container is:
|External length||12.2 m / 40 ft||12.2 m / 40 ft|
|External width||2.44 m / 8 ft||2.44 m / 8 ft|
|External height||2.60 m / 8.6 ft||2.90 m / 9.6 ft|
|Door Width||2.34 m / 7.8 ft||2.34 m / 7.8 ft|
|Door Height||2.26 m / 7.5 ft||2.57 m / 8.5 ft|
|Max Gross Weight||30,480 kg / 67,196 lbs||32,500 kg / 71,650 lbs|

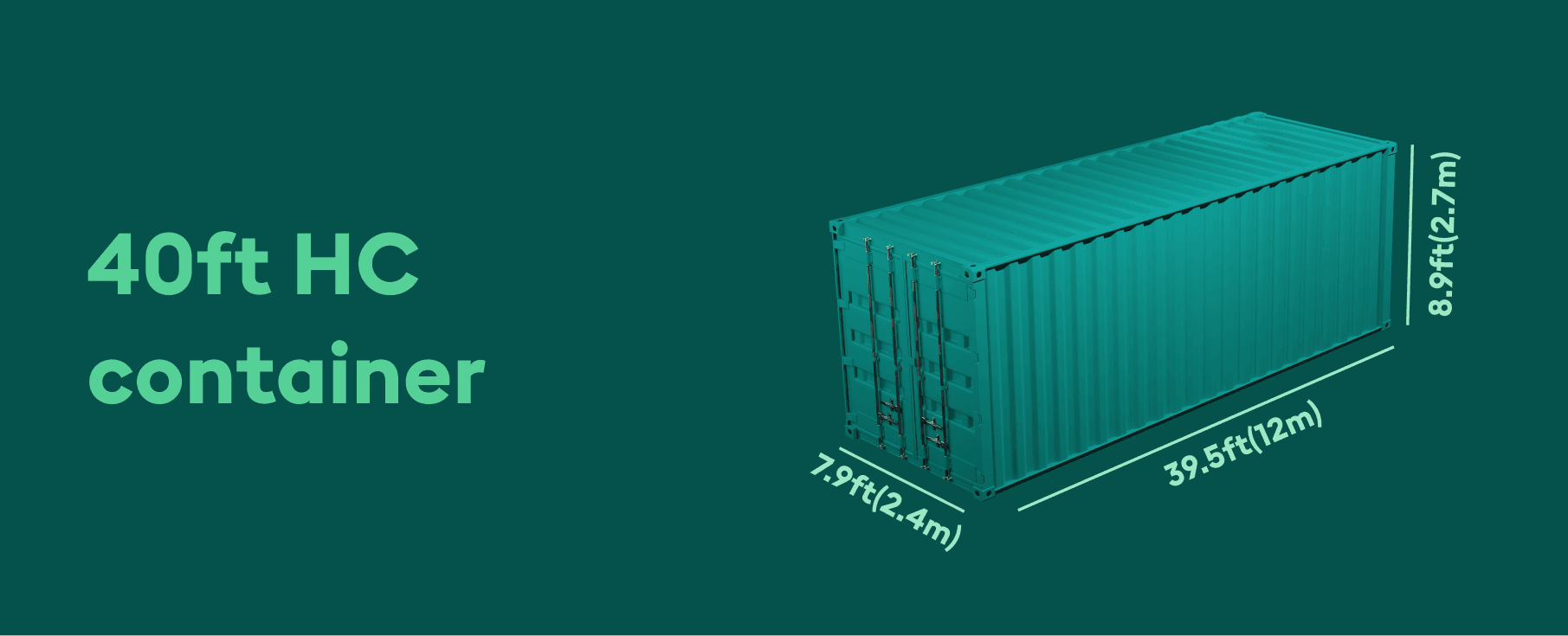

Mostly, high cube containers are 40ft tall, but they can also be 45ft (depending on the requirements). Here are the internal measurements and capacity of these containers:
|Measure||40ft HC||45ft HC|
|Internal length||12.03 m / 39.5 ft||13.55 m / 44.5 ft|
|Internal width||2.35 m / 7.8 ft||2.35 m / 7.8 ft|
|Internal height||2.67 m / 8.9 ft||2.67 m / 8.9 ft|
|Tare weight||3,940 kg / 8,687 lbs||4,820 kg / 10,628 lbs|
|Payload capacity||28,600 kg / 63,052 lbs||27,860 kg / 61,431 lbs|
|Cubic capacity||76.3 m3 / 2,694.5 cu ft||86 m3 / 3,036 cu ft|
Note: These containers are often considered over-heightened for inland transportation (tunnels, bridges, etc.)
High cubes are used to ship all kinds of dry cargo, just like standard containers. But, they are extremely functional for transporting light and large cargo, especially the ones with heights (maximum 2.70 m).
In terms of volume, how much can you fit in a 40ft high cube container?
760 medium flower pots. 610 standard package boxes. 152 bicycles, give or take a couple. Or, contents of two 4 bedroom houses 😅
But, to simplify things in standard sizes: according to European pallet size (1.2m x 0.8m), you can fit in 25 pallet stacks in a 40ft high cube container. For American pallets (1.01m x 1.21m), it can fit 21 pallet stacks as long as they are not hanging over the sides.
